4pinamp
New product

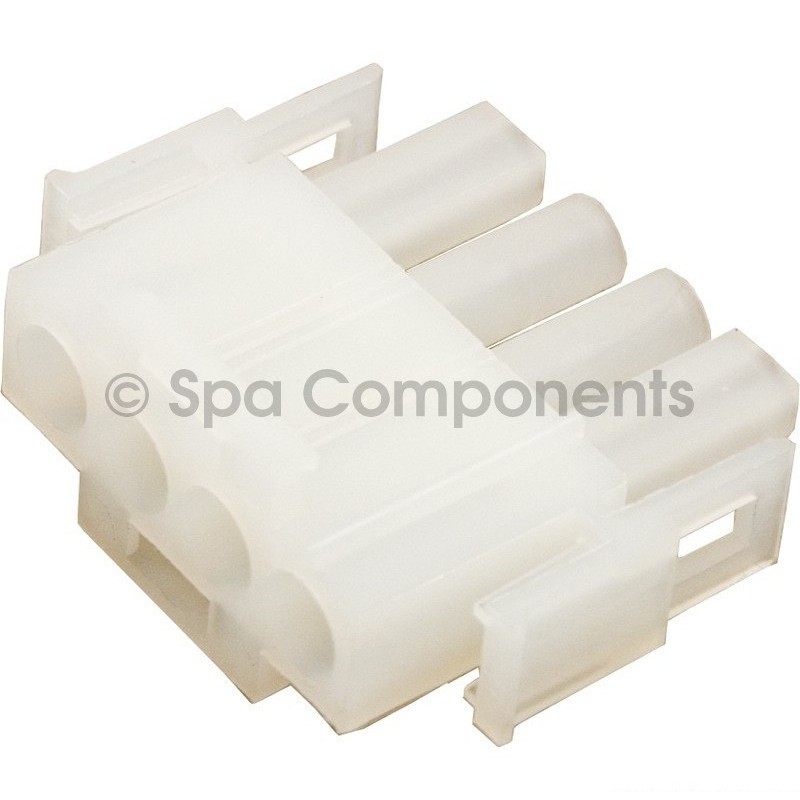

White plug for connecting to directly Balboa circuit boards.
4 pin plugs are used for everything BUT lights, which use the 2 pin.
DO NOT COME WITH PINS which you will need to buy separately.
This product is no longer in stock
Availability date:
Wiring and pin help :
When looking at the end of the 4 pin amp cable you will notice the first and last have a flat top.
This colour guidanace is based on when the flat tops are pointing upwards.
Left to right for a 2 speed pump :
Red (High Sped live) - Black (Low speed live) - White (Neutral) - Green (Earth)
Left to right for a single speed pump or blower :
Black (Live) - Gap (no wiring) - White (Neutral) - Green (Earth)
